The SQLite Browser tool in VisualNEO Web provides a graphical interface to explore, manage, and edit SQLite database files. This tool is ideal for developers who need to work with SQLite databases as part of their applications. It simplifies database management, enabling users to view table structures, browse data, and execute SQL queries without needing an external database management tool.



Key Features

  1. Database Structure View:
    • Visualize the tables, fields, and their relationships within the database.
    • Displays detailed information, including field types, primary keys, and constraints.
  2. Browse Data:
    • View and navigate through the data stored in each table.
    • Edit or delete records directly within the browser.
  3. Execute SQL Queries:
    • Write and run custom SQL commands to query or modify the database.
    • Supports advanced SQL operations such as joins, updates, and inserts.
  4. Import and Export:
    • Import data into tables or export the database for external use.

How to Use the SQLite Browser

  1. Open a Database File:
    • Launch the SQLite Browser tool from the Tools menu.
    • Use the file selector to locate and open an existing SQLite file (.sqlite or .db).

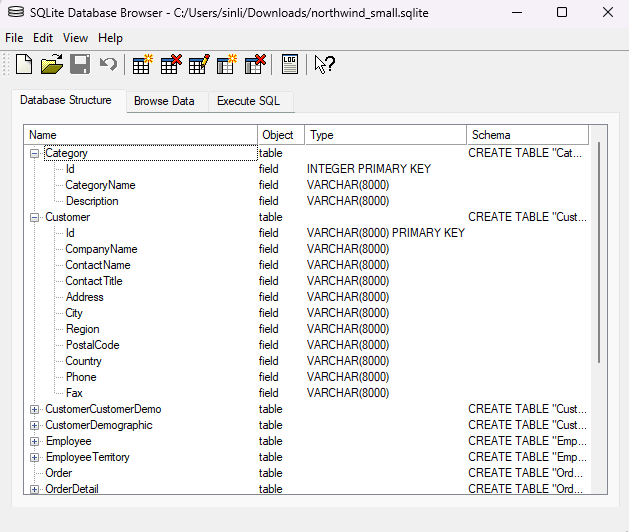

  2. Explore the Database Structure:
    • Navigate the Database Structure tab to view all tables and fields.
    • Expand a table to see its fields, types, and schema.
  3. Browse Table Data:
    • Switch to the Browse Data tab to view the contents of a selected table.
    • Modify data by clicking on a field and entering new values.
    • Add or delete rows as needed.
  4. Run SQL Queries:
    • Open the Execute SQL tab to write custom SQL commands.
    • For example:

SELECT * FROM Customers WHERE Country = 'USA';

    • Click Execute to run the query and view the results.
  1. Save Changes:
    • Ensure that any edits or updates are saved to the database file before closing the tool.

Example Use Cases

  • View Table Schema:
    • Use the Database Structure tab to examine the schema of a table, such as primary keys or data types.
  • Query Data:
    • Run a query like:

SELECT CategoryName, COUNT(*)
FROM Products
GROUP BY CategoryName;

to analyze product categories.

  • Edit Records:
    • Modify customer information directly in the Browse Data tab.

Best Practices

  • Backup Your Database:
    • Always create a backup of your database file before making significant changes.
  • Use Meaningful Queries:
    • In the Execute SQL tab, test queries carefully to avoid accidental data loss or corruption.
  • Optimize Performance:
    • Regularly clean and optimize your database by removing unused data or restructuring tables for better performance.

Warning

Editing database files directly can result in data loss if performed incorrectly. Use the SQLite Browser tool with caution, and always validate changes before saving them.
